Hardware Specifications

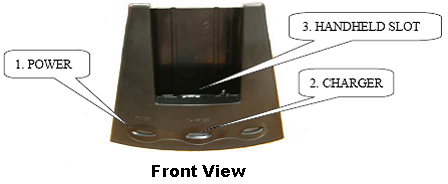

1. POWER: cradle power status LED.

2. CHARGER: MP3000 spare battery charging status LED.

3. HANDHELD SLOT: where an MP3000 handheld unit is inserted.

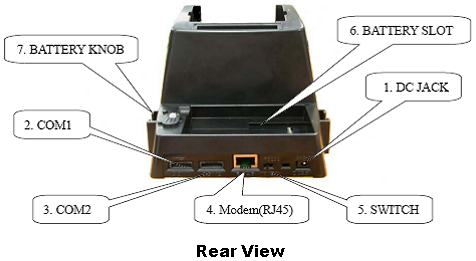

1. DC JACK: power supply (via MP3000 AC/DC adapter).

2. COM1: for connection to an RS232 or USB port of a host computer via an MP3000 data cable.

3. COM2: for connection to an RS232 port of an external device.

(Domex GPS…) Note: COM1 and COM2 can’t be connected

simultaneously.

4. RJ45: for Optional Modem(pin4,5 of RJ45) connection or

Ethernet (Not support yet) connection.

5. SWITCH: for selection between RS232 serial (COM1 & COM2) and Modem (RJ45) modes. ( USB connection is not affected.)

6. BATTERY SLOT: for recharging spare battery.

7. BATTERY KNOB: for fixing spare battery in position.
